Description

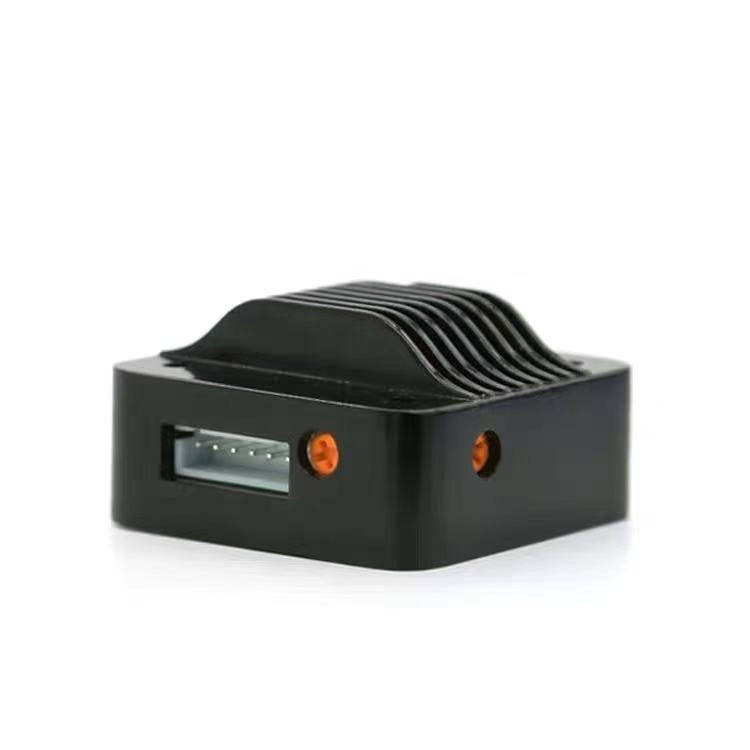

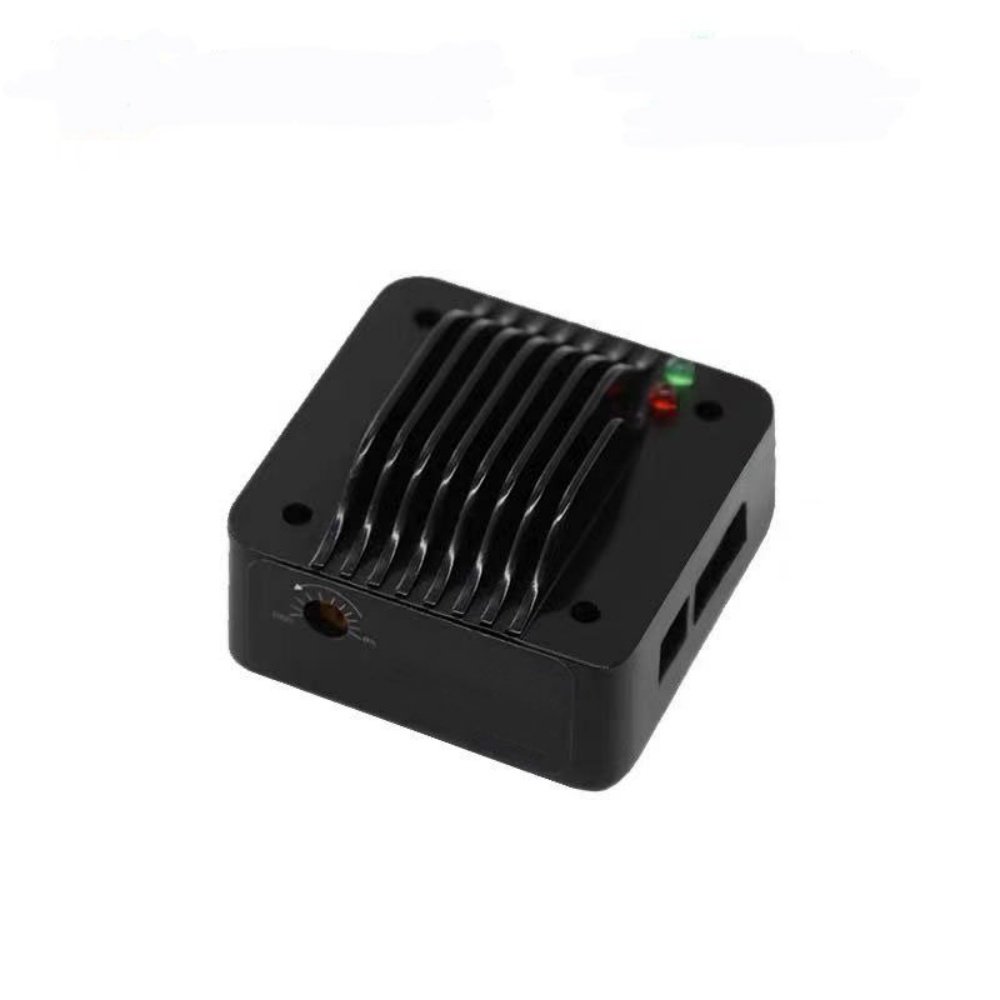

PMD 6P is a micro two phase stepper motor driver for peristaltic pump, which can be directly installed on the back of 42/57 stepper motor.
With small size, strong driving force and low calorific value, provide 0-4A continuous adjustable peak current, maximum 128 subdividion.
Technical Data
| Item | Detail |
| Development environment | PLC MCU |
| Support motor | 2-phase stepper mtor |
| Voltage | DC 9V-48V |
| Current | 0.4A-4A |
| Microstepping | 0/128 adjustable |
| Temp.Range | -20ºC-80ºC |
| Max pulse frequency | 250K |
| Durability | Over 20,000 hours |
Interface Definition
| Interface | Definition |
| J1 | ENA+-:Enable signal, optocoupler in put, not enable on condution PUL+-:Pulse signal, optocoupler input DIR+-:Direction ( or pulse ) signal, optocoupler input Interface voltage: 5V |
| J2 | M10, M11:Stepper motor A phase M20, M21:Stepper motor B phase |
| J3 | VCC:DC power supply GND:Ground |
