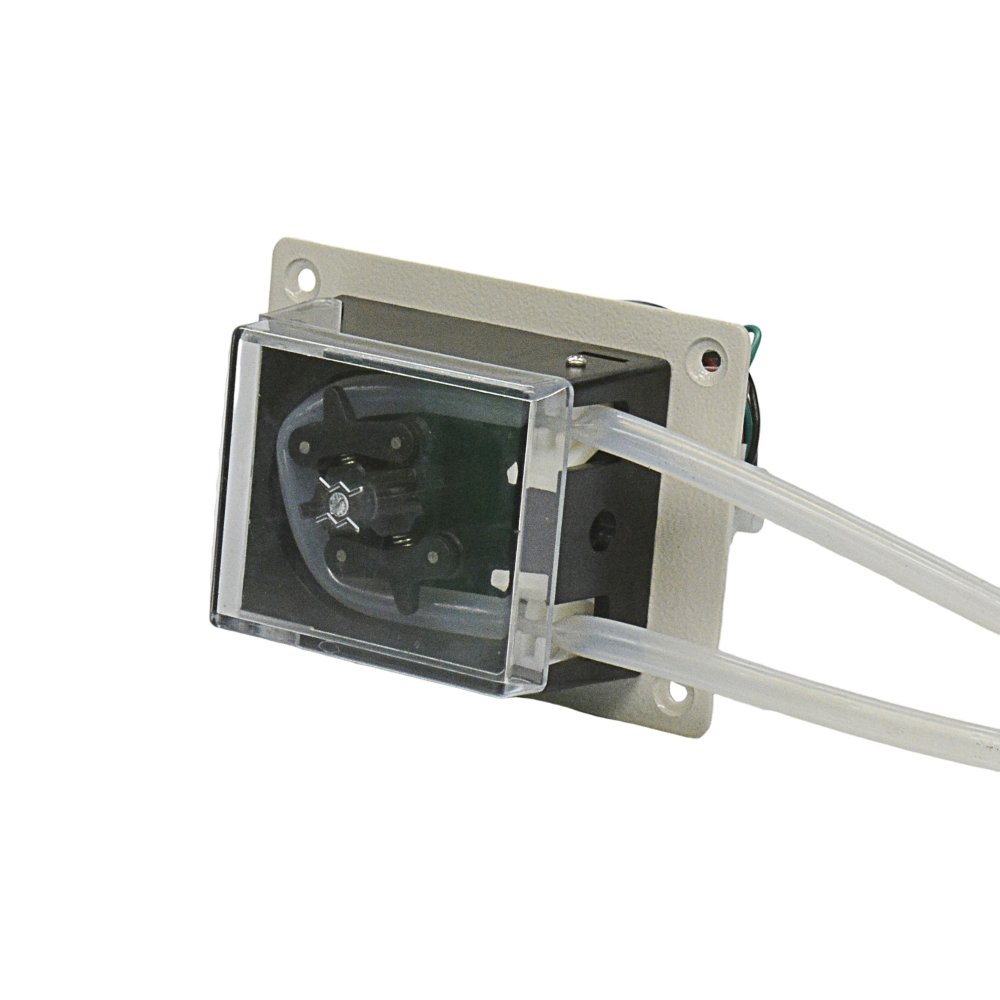

spring type peristaltic pump TH15

TH15 spring peristaltic pump flow rate 700ml/min
Adaptive tube wall thickness prolong the tube life
Straight platespecial mounting plate can be customized
Stepper motorDC motor or synchronous motor in optional
Suitable tube 14# 16# 25# 17#

Description

Streamlined appearance, visual design of pump cover, easy to clean and observe the operating status;
With suction clamshell design for reliable operation and convenient tube change;
Automatic protection function design for automatic opening and closing of the cover;
Full tube mounting and built-in tube with joint fixing;
Drainage tank design ensures no fluid in the pump;
The product has ability of corrosion resistant;
Can adapt to a normal stepper motor, synchronous motor.

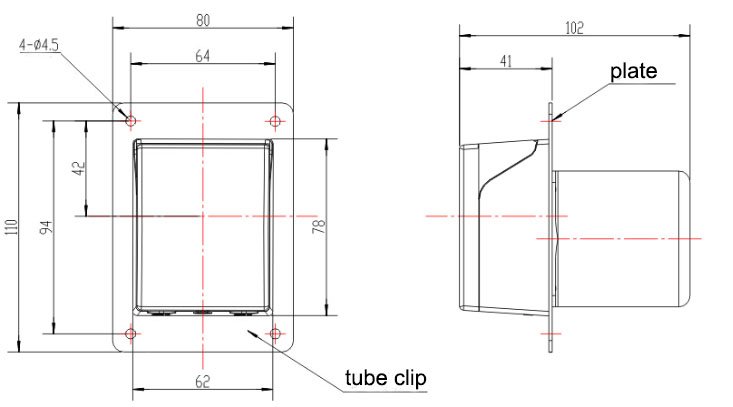

Installation
1676970718134468
