Parts for peristaltic pump

peristaltic pump driver

Can be installed on the back of 42/57 stepper motor
Small size strong driver force low calorific value
Provide 0-4A continuous adjusable peak current
Maximum 128 subdivision idle current continuous adjustable

FEEDBACK

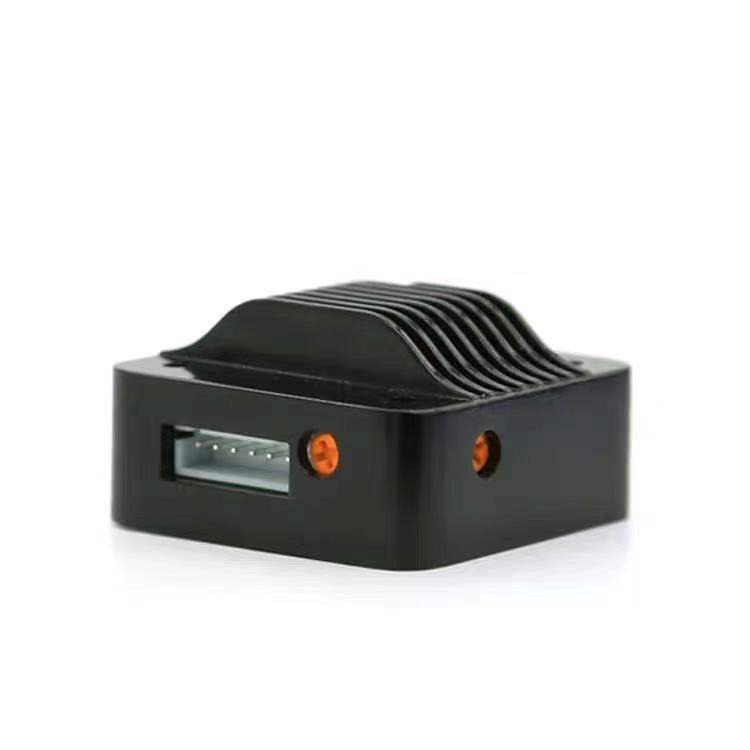

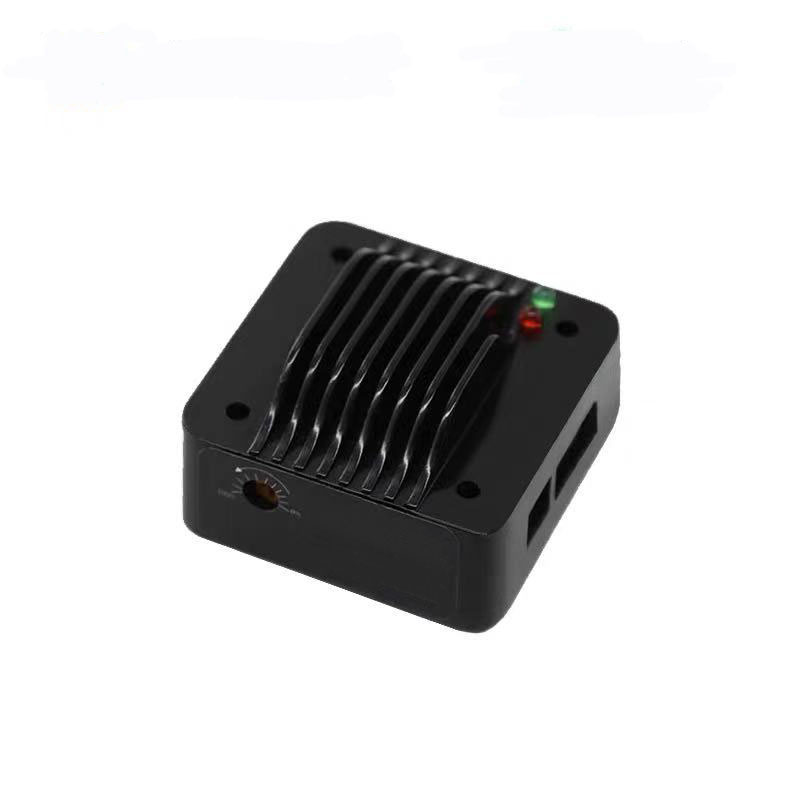

PMD 6P is a micro two phase stepper motor driver for peristaltic pump, which can be directly installed on the back of 42/57 stepper motor.
With small size, strong driving force and low calorific value, provide 0-4A continuous adjustable peak current, maximum 128 subdividion.

Technical Data

Item	Detail
Development environment	PLC MCU
Support motor	2-phase stepper mtor
Voltage	DC 9V-48V
Current	0.4A-4A
Microstepping	0/128 adjustable
Temp.Range	-20ºC-80ºC
Max pulse frequency	250K
Durability	Over 20,000 hours

Interface Definition

Interface	Definition
J1	ENA+-:Enable signal, optocoupler in put, not enable on condution PUL+-:Pulse signal, optocoupler input DIR+-:Direction ( or pulse ) signal, optocoupler input Interface voltage: 5V
J2	M10, M11:Stepper motor A phase M20, M21:Stepper motor B phase
J3	VCC:DC power supply GND:Ground
